7 nagios

一：概述：

主要监控：网络服务、主机资源等

nagios监控：

数据间接收集：（被动监控）由server使用nrpe客户端，连接client的nrpe服务端，采集后返回给server，适合一些系统类资源监控
                                CPU负载、磁盘使用情况、等
                                nrpe——》nrpe（inetd）——》check_xyz——》nrpe（inetd）——》nrpe——》nagios core——》决策（C/S架构）
数据直接收集：（主动监控）由server直接探测client，适合监控一些网络服务
                                sshd、httpd、mysqld
                                nrpe（inetd）——》check_xyz——》被监控的服务——》nagios core——》决策（C/S架构）

拓展：

    C/S架构：client/server 客户端/服务端架构
    B/S：    Web/server  网页/服务端架构

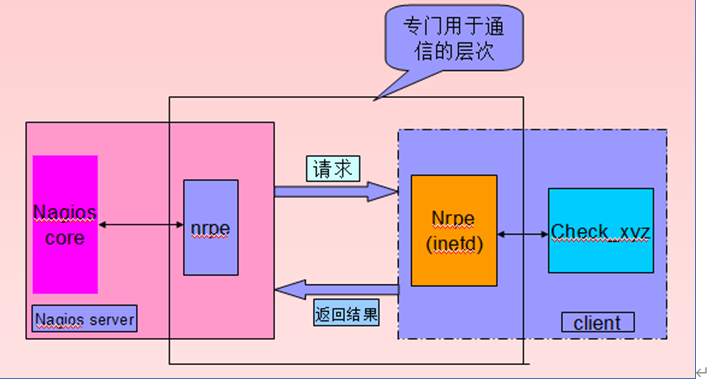

原理图：

二：拓展：nagios配置文件的区别和关联关系

/usr/local/nagios/
                libexec/
                        check_*                         #探测脚本
                etc/                                    #配置文件目录
                        nagios.cfg                      #nagios主配置文件
                        objects/                        #子配置文件目录
                                command.cfg             #模板调用的检测命令
                                *.cfg                   #主机的监控配置文件

总结：主配置文件调用了子配置文件目录下的主机监控配置文件，其中调用了检测命令配置文件，检测命令配置文件再去调用检测命令

nagios.cfg      obkects/        *.cfg           command.cfg                 libexec/check_ *

三：实验一 7版本安装最新版nagios

1、进入官方网站，下载软件包，利用官方手册安装（一键安装）

#7-1服务端配置
[root@localhost ~]# ls
anaconda-ks.cfg  ifcfg-ens33  nagiosxi  scripts  xi-latest.tar.gz
[root@localhost ~]# cd nagiosxi/
[root@localhost nagiosxi]# ./fullinstall

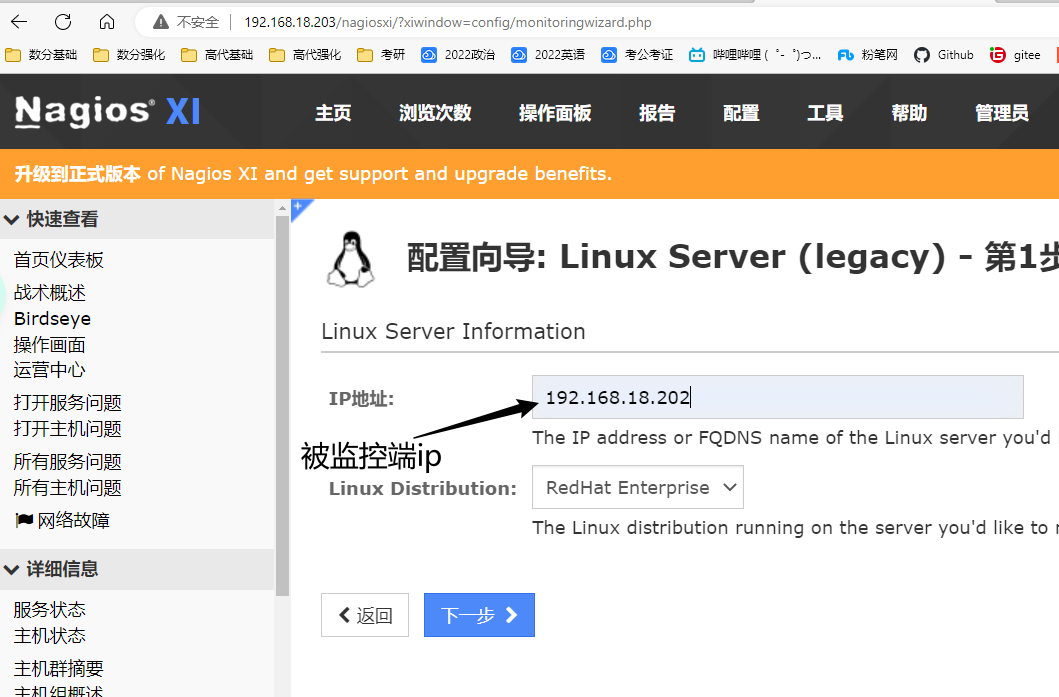

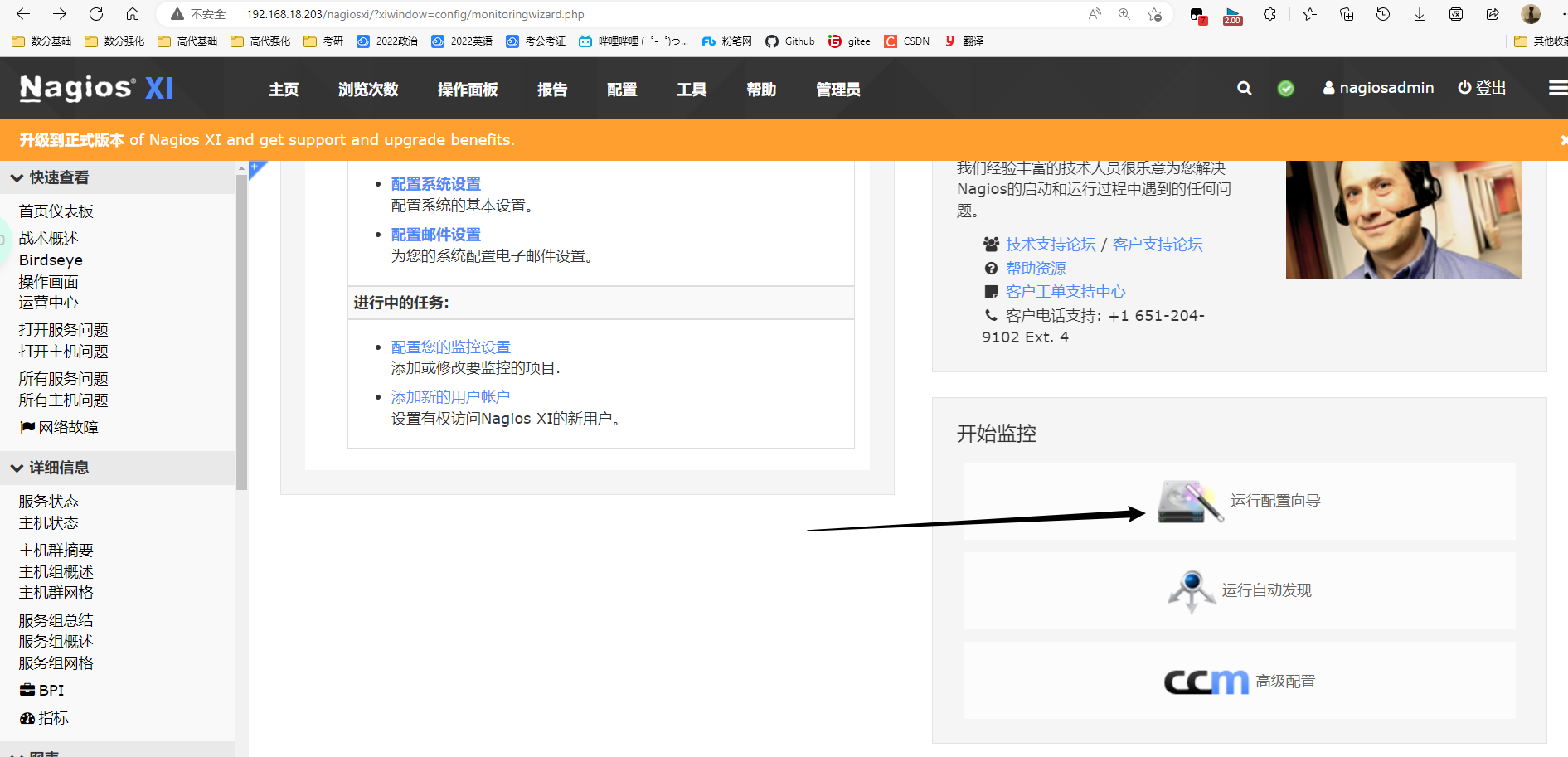

2、再通过浏览器web管理将，7-2加入监控

3、7-2、7-4客户端配置客户端

#7-2、7-4客户端配置
[root@localhost ~]# tar -xf linux-nrpe-agent.tar.gz
[root@localhost ~]# cd linux-nrpe-agent/
[root@localhost ~]# ./fullinstall

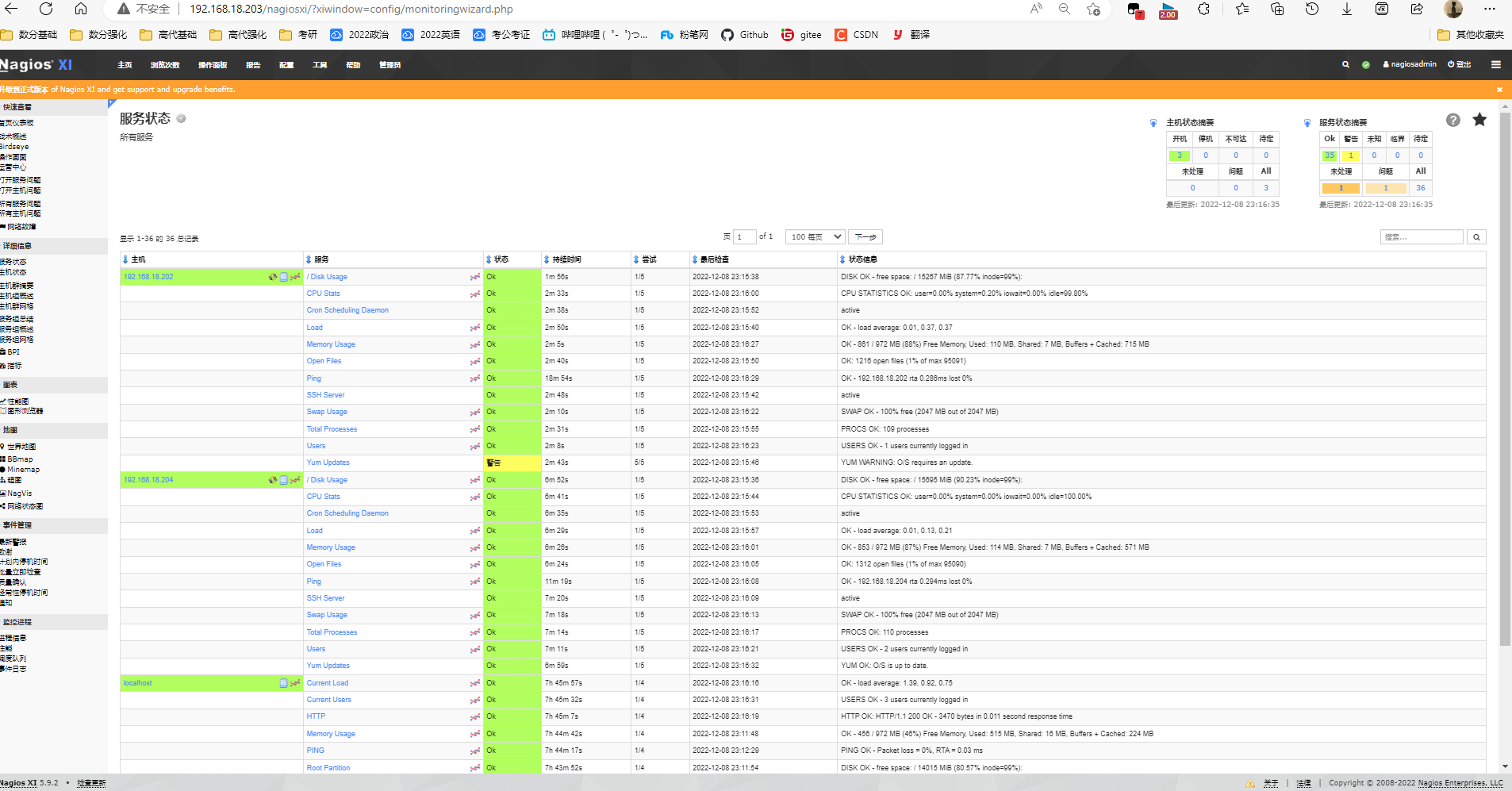

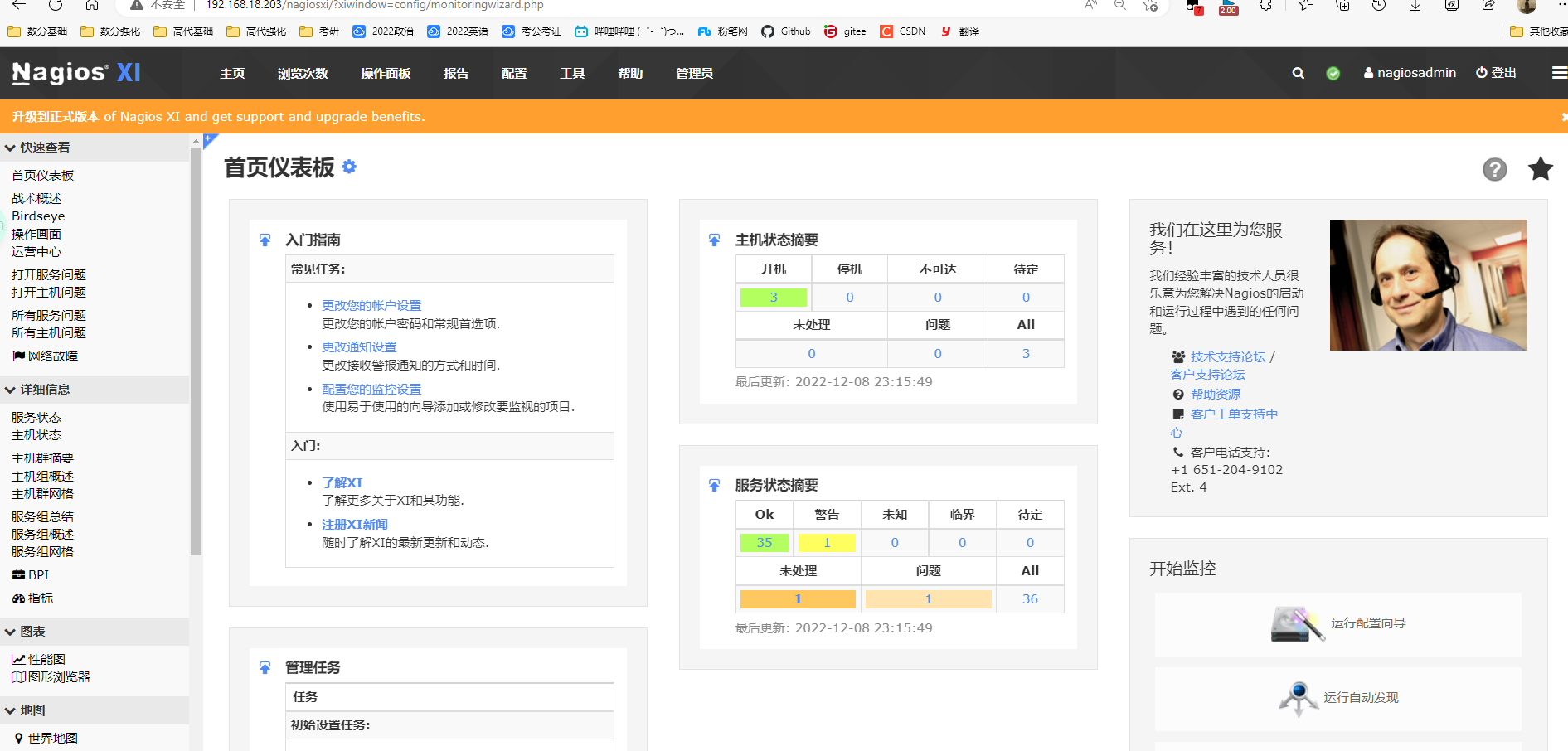

4、7-1再用web管理进行下一步安装

四：实验二 6版本安装nagios

虚拟机	环境	步骤
6-1	nagios服务器，nrpe客户端	1.配置nagios网页本地安装所需依赖，LAMP环境创建nagcmd组，并将新用户nagios、apache加入组解压nagios-3.3.1.tar.gz，进入、检查、编译make all、安装(不一样的) 生成密码文件（保护目录）、重启httpd 2.安装，配置插件管理解压nagios-plugins-1.4.14.tar.gz，进入，检查，编译，安装设置自启动nagios，创建软链接方便调用命令检查语法，启动nagios 浏览器登录，进行查看 3.安装nagios客户端解压，进入nrpe，检查，编译，安装编写自定义监控主机的配置文件 linux20.cfg 在nagios主配置文件（nagios.cfg）中调用 linux20.cfg文件检查语法，重启nagios 进入浏览器查看监控 4.增加被监控主机的资源项 linux20.cfg中新增内容创建新监控配置文件 mysql.cfg 在command.cfg中新增check_load、check_mysql脚本的调用检查主配置文件对监控配置文件的调用检查nagios语法，重启nagios测试
6-2	nagios客户端，nrpe服务端	1.nagios客户端配置安装依赖gcc、gcc-c++、openssl、openssl-devel 创建nagcmd用户安装nagios-plugin 安装nrpe服务端，修改nrpe配置文件，创建软链接，并初始化nrpe，检查5666端口 2.重新配置nrpe配置文件重新修改nrpe配置文件（作为nrpe的服务端监控本机的资源，更改负载的条件）杀死nrpe进程，重新初始化nrpe 安装数据库，创建库，并远程登陆的用户（方便6-1对6-2的数据库服务进行监控）

1）6-1配置nagios网页

1.本地安装所需依赖，LAMP环境

[root@localhost ~]# yum -y install gcc gcc-c++ httpd mysql mysql-server mysql-devel php php-mysql glibc glibc-common *.gd*

2.创建nagcmd组，并将新用户nagios、apache加入组

[root@localhost ~]# useradd nagios
[root@localhost ~]# groupadd nagcmd
[root@localhost ~]# gpasswd -a nagios nagcmd
正在将用户“nagios”加入到“nagcmd”组中
[root@localhost ~]# gpasswd -a apache nagcmd
正在将用户“apache”加入到“nagcmd”组中

3.解压，进入、检查、编译、安装

./configure --prefix=/usr/local/nagios --with-command-group=nagcmd      #检查
--enable-event-broker --sysconfdir=/etc/nagios                          #候补选项：需要指定nagios 配置文件位置时，这样指定。本次实验未指定

[root@localhost ~]# unzip nagios.zip
[root@localhost ~]# cd nagios
[root@localhost nagios]# tar -xf nagios-3.3.1.tar.gz
[root@localhost nagios]# cd nagios
[root@localhost nagios]# ./configure --prefix=/usr/local/nagios --with-command-group=nagcmd
[root@localhost nagios]# make all                           #编译
[root@localhost nagios]# make install                       #安装二进制运行程序
[root@localhost nagios]# make install-init                  #初始化脚本
[root@localhost nagios]# make install-config                #配置文件样本
[root@localhost nagios]# make install-commandmode           #设置运行目录权限，命令相关
[root@localhost nagios]# make install-webconf               #设置nagios配置文件到apache子配置文件下

4.生成密码文件（保护目录）、重启httpd

[root@localhost nagios]# grep "htpasswd.users" /etc/httpd/conf.d/nagios.conf                #查看目录保护的文件指向位置
   AuthUserFile /usr/local/nagios/etc/htpasswd.users
   AuthUserFile /usr/local/nagios/etc/htpasswd.users
[root@localhost nagios]# htpasswd -c /usr/local/nagios/etc/htpasswd.users nagiosadmin       #生成密码文件
[root@localhost nagios]# service httpd restart
[root@localhost nagios]# chkconfig httpd on

2）6-1安装，配置插件管理器

1.解压，进入，检查，编译，安装

[root@localhost nagios]# tar -xf nagios-plugins-1.4.14.tar.gz
[root@localhost nagios]# cd nagios-plugins-1.4.14
[root@localhost nagios-plugins-1.4.14]# ./configure --with-nagios-user=nagios --with-nagios-group=nagios --with-mysql --enable-perl-modules
[root@localhost nagios-plugins-1.4.14]# make && make install

2.设置自启动nagios，创建软链接方便调用命令

[root@localhost ~]# chkconfig nagios on
[root@localhost ~]# ln -s /usr/local/nagios/bin/* /usr/local/bin/
[root@localhost ~]# ln -s /usr/local/nagios/sbin/* /usr/local/sbin/

3.检查语法，启动nagios

[root@localhost ~]# nagios -v /usr/local/nagios/etc/nagios.cfg      #检查语法
Total Warnings: 0
Total Errors:   0

Things look okay - No serious problems were detected during the pre-flight check

[root@localhost ~]# service nagios start                            #启动

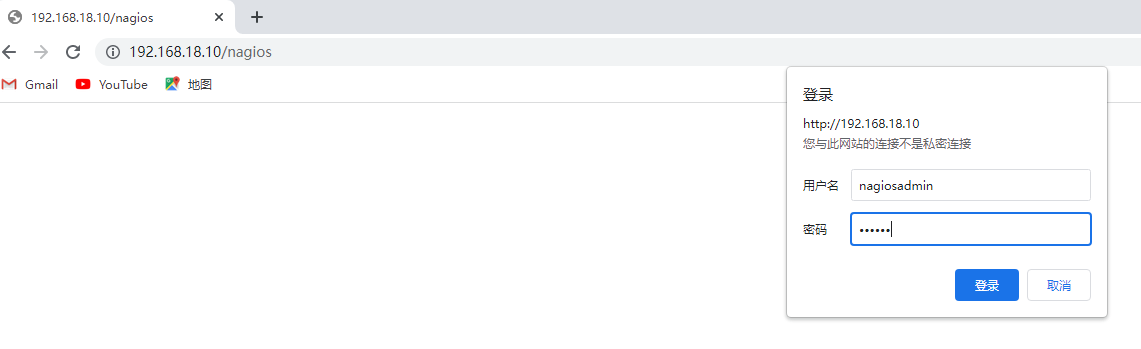

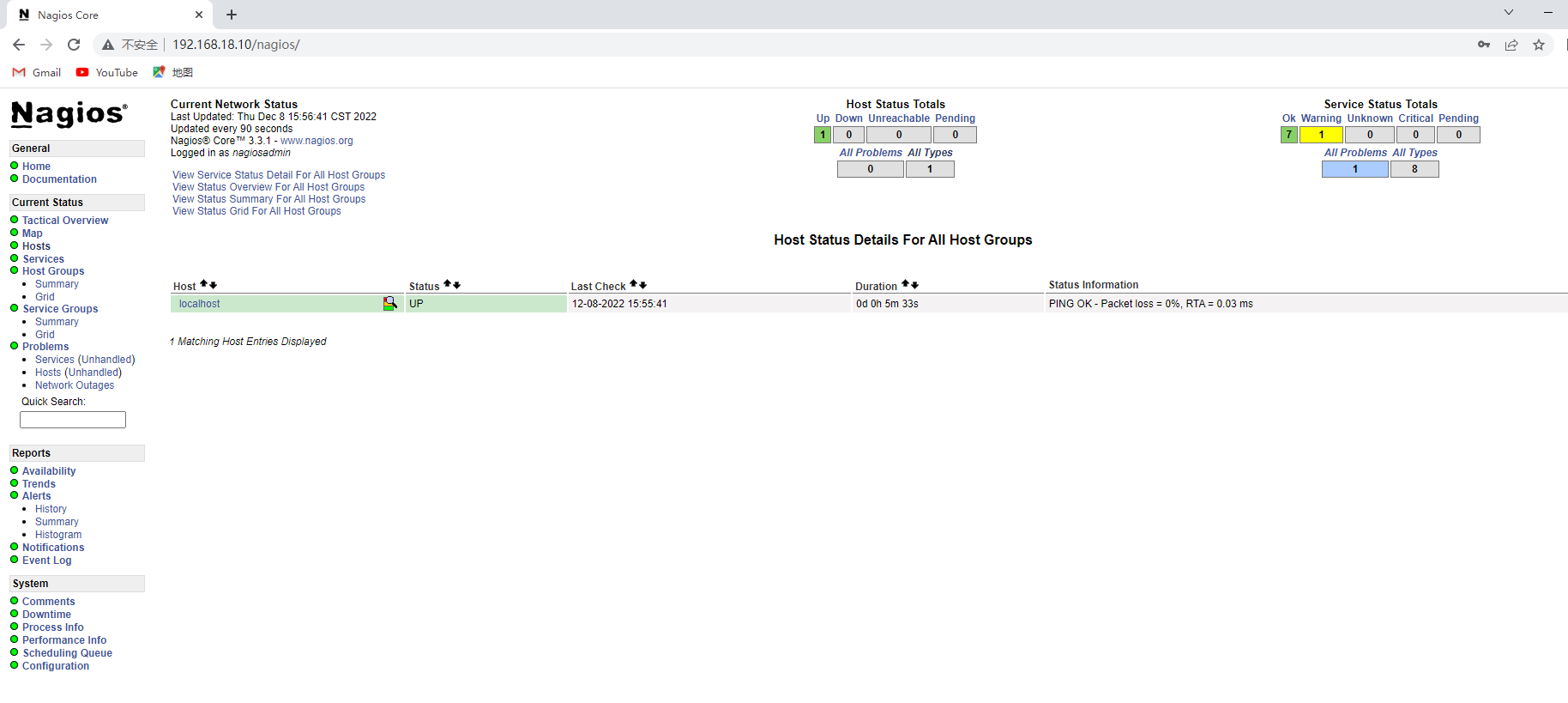

4.浏览器登录，进行查看

3）6-2 nagios客户端配置

1.安装依赖gcc、gcc-c++、openssl、openssl-devel

[root@localhost ~]# yum -y install gcc gcc-c++ openssl openssl-devel

2.创建nagcmd用户

[root@localhost ~]# useradd nagios

3.安装nagios-plugins

[root@localhost ~]# unzip nagios.zip
[root@localhost ~]# cd nagios
[root@localhost nagios]# tar -xf nagios-plugins-1.4.14.tar.gz
[root@localhost nagios]# cd nagios-plugins-1.4.14
[root@localhost nagios-plugins-1.4.14]# pwd
/root/nagios/nagios-plugins-1.4.14
[root@localhost nagios-plugins-1.4.14]# ./configure --with-nagios-user=nagios --with-nagios-group=nagios
[root@localhost nagios-plugins-1.4.14]# make all && make install

4.安装nrpe服务端，修改nrpe配置文件，创建软链接，并初始化nrpe，检查5666端口

[root@localhost ~]# cd nagios
[root@localhost nagios]# tar -xf nrpe-2.12.tar.gz
[root@localhost nagios]# cd nrpe-2.12
[root@localhost nrpe-2.12]# pwd
/root/nagios/nrpe-2.12
[root@localhost nrpe-2.12]# ./configure --enable-ssl --with-ssl-lib=/usr/lib/           #安装nrpe服务端
[root@localhost nrpe-2.12]# make all
[root@localhost nrpe-2.12]# make install-plugin
[root@localhost nrpe-2.12]# make install-daemon
[root@localhost nrpe-2.12]# make install-daemon-config

[root@localhost ~]# vim /usr/local/nagios/etc/nrpe.cfg                                  #修改nrpe配置文件
[root@localhost ~]# grep "allowed_hosts" /usr/local/nagios/etc/nrpe.cfg
allowed_hosts=192.168.18.10,127.0.0.1
[root@localhost ~]# ln -s /usr/local/nagios/bin/* /usr/local/bin/                       #创建软链接，并初始化nrpe
[root@localhost ~]# nrpe -c /usr/local/nagios/etc/nrpe.cfg -d
[root@localhost ~]# netstat -anpt |grep 5666                                            #检查nrpe运行
tcp        0      0 0.0.0.0:5666                0.0.0.0:*                   LISTEN      39378/nrpe

4）6-1 nagios服务端安装 nrpe的客户端

1.解压，进入nrpe，检查，编译，安装

[root@localhost ~]# cd nagios
[root@localhost nagios]# tar -xf nrpe-2.12.tar.gz
[root@localhost nagios]# cd nrpe-2.12
[root@localhost nrpe-2.12]# pwd
/root/nagios/nrpe-2.12
[root@localhost nrpe-2.12]# ./configure --enable-ssl --with-ssl-lib=/usr/local/lib/
[root@localhost nrpe-2.12]# make all && make install-plugin

2.编写自定义监控主机的配置文件 linux20.cfg

[root@localhost ~]# vim /usr/local/nagios/etc/objects/linux20.cfg
[root@localhost ~]# cat /usr/local/nagios/etc/objects/linux20.cfg
define host{
    use     linux-server
    host_name   CentOS-20
    alias       20
    address     192.168.18.20
    }
define service{
    use     generic-service
    host_name   CentOS-20
    service_description SSH
    check_command   check_ssh
    }

3.在nagios主配置文件（nagios.cfg）中调用 linux20.cfg文件

[root@localhost ~]# vim /usr/local/nagios/etc/nagios.cfg
[root@localhost ~]# grep "linux20.cfg" /usr/local/nagios/etc/nagios.cfg
cfg_file=/usr/local/nagios/etc/objects/linux20.cfg

4.检查语法，重启nagios

[root@localhost ~]# nagios -v /usr/local/nagios/etc/nagios.cfg

[root@localhost ~]# service nagios restart

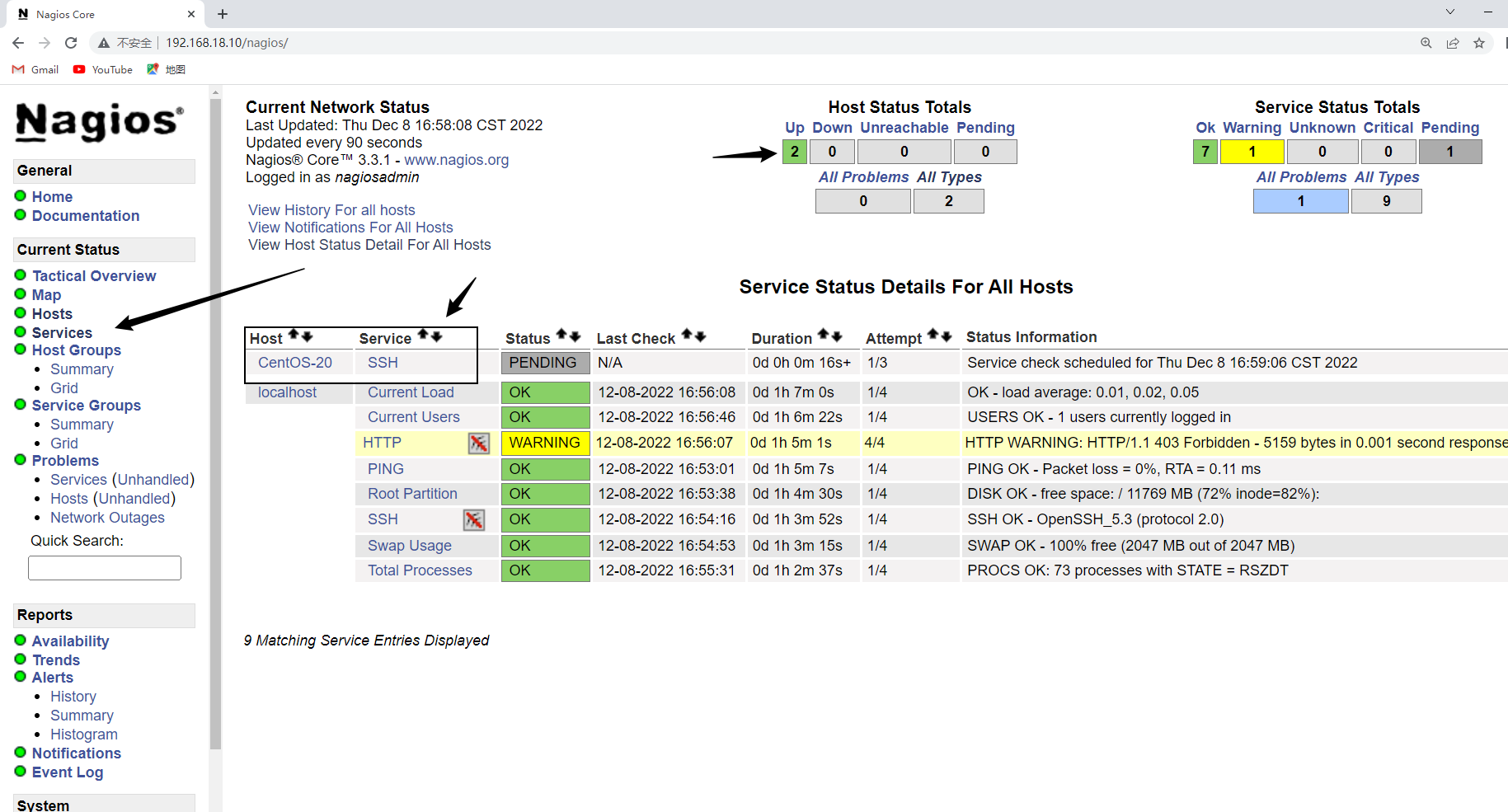

5.进入浏览器查看监控

5）6-2 nagios客户端重新配置nrpe配置文件

1.重新修改nrpe配置文件（作为nrpe的服务端监控本机的资源，更改负载的条件）

[root@localhost ~]# vim /usr/local/nagios/etc/nrpe.cfg
[root@localhost ~]# grep "check_load" /usr/local/nagios/etc/nrpe.cfg
command[check_load]=/usr/local/nagios/libexec/check_load -w 3,2,1 -c 5,4,3
#command[check_load]=/usr/local/nagios/libexec/check_load -w $ARG1$ -c $ARG2$

2.杀死nrpe进程，重新初始化nrpe

[root@localhost ~]# netstat -anpt |grep :5666
tcp        0      0 0.0.0.0:5666                0.0.0.0:*                   LISTEN      39378/nrpe
[root@localhost ~]# kill 39378

[root@localhost ~]# nrpe -c /usr/local/nagios/etc/nrpe.cfg -d               #重新初始化nrpe
[root@localhost ~]# netstat -anpt |grep :5666
tcp        0      0 0.0.0.0:5666                0.0.0.0:*                   LISTEN      39410/nrpe

3.安装数据库，创建库，并远程登陆的用户（方便6-1对6-2的数据库服务进行监控）

[root@localhost ~]# yum -y install mysql mysql-server
[root@localhost ~]# service mysqld start
[root@localhost ~]# mysql

mysql> create database nagios;

mysql> grant select on nagios.* to nagios@'%' identified by '123456';

6）6-1 增加被监控主机的资源项

1.linux20.cfg中新增内容

[root@localhost ~]# vim /usr/local/nagios/etc/objects/linux20.cfg
[root@localhost ~]# cat /usr/local/nagios/etc/objects/linux20.cfg
define host{
    use     linux-server
    host_name   CentOS-20
    alias       20
    address     192.168.18.20
    }
define service{
    use     generic-service
    host_name   CentOS-20
    service_description SSH
    check_command   check_ssh
    }
define service{
    use     generic-service
    host_name   CentOS-20
    service_description Load
    check_command   check_nrpe!check_load
    }
define service{
    use     generic-service
    host_name   CentOS-20
    service_description users
    check_command   check_nrpe!check_users
    }

2.创建新监控配置文件 mysql.cfg

[root@localhost ~]# cat /usr/local/nagios/etc/objects/mysql.cfg
define host{
    use     linux-server
    host_name   Mysql
    alias       Mysql   Server
    address 192.168.18.20
    }
define service {
    host_name   Mysql
    check_period    24x7
    max_check_attempts  2
    normal_check_interval   1
    retry_check_interval    1
    contact_groups      admins
    notification_interval   5
    notification_period 24x7
    notification_options    w,u,c,r
    check_command check_mysql
    }

3.在command.cfg中新增check_load、check_mysql脚本的调用（客户端的check_users默认调用了）

[root@localhost ~]# vim /usr/local/nagios/etc/objects/commands.cfg
[root@localhost ~]# tail -n 8 /usr/local/nagios/etc/objects/commands.cfg
define command{
    command_name    check_nrpe
    command_line    $USER1$/check_nrpe -H $HOSTADDRESS$ -c $ARG1$
    }
define command{
    command_name    check_mysql
    command_line    $USER1$/check_mysql -H $HOSTADDRESS$ -u nagios -p 123456
    }

4.检查主配置文件对监控配置文件的调用

[root@localhost ~]# vim /usr/local/nagios/etc/nagios.cfg
[root@localhost ~]# egrep "linux20|mysql" /usr/local/nagios/etc/nagios.cfg
cfg_file=/usr/local/nagios/etc/objects/linux20.cfg
cfg_file=/usr/local/nagios/etc/objects/mysql.cfg

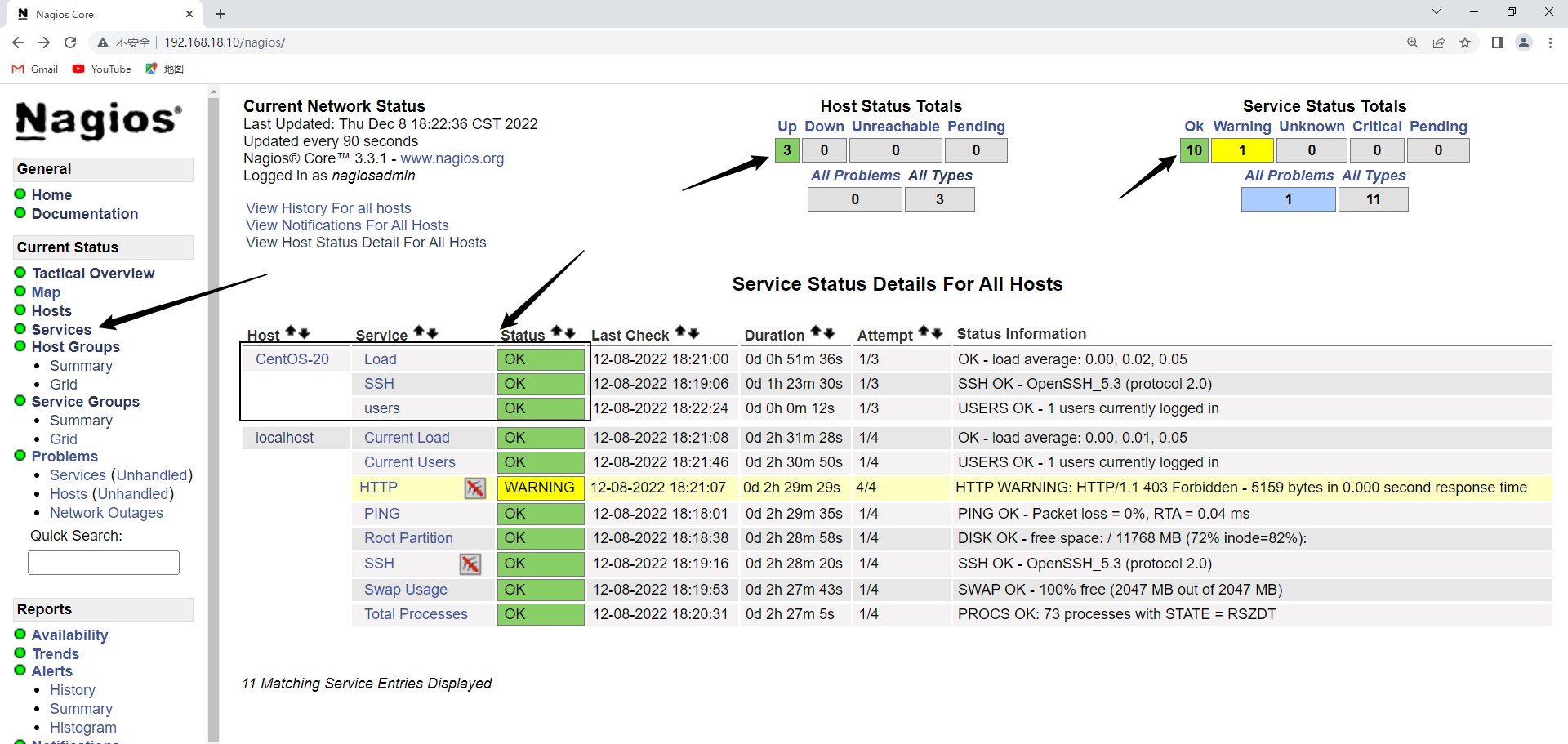

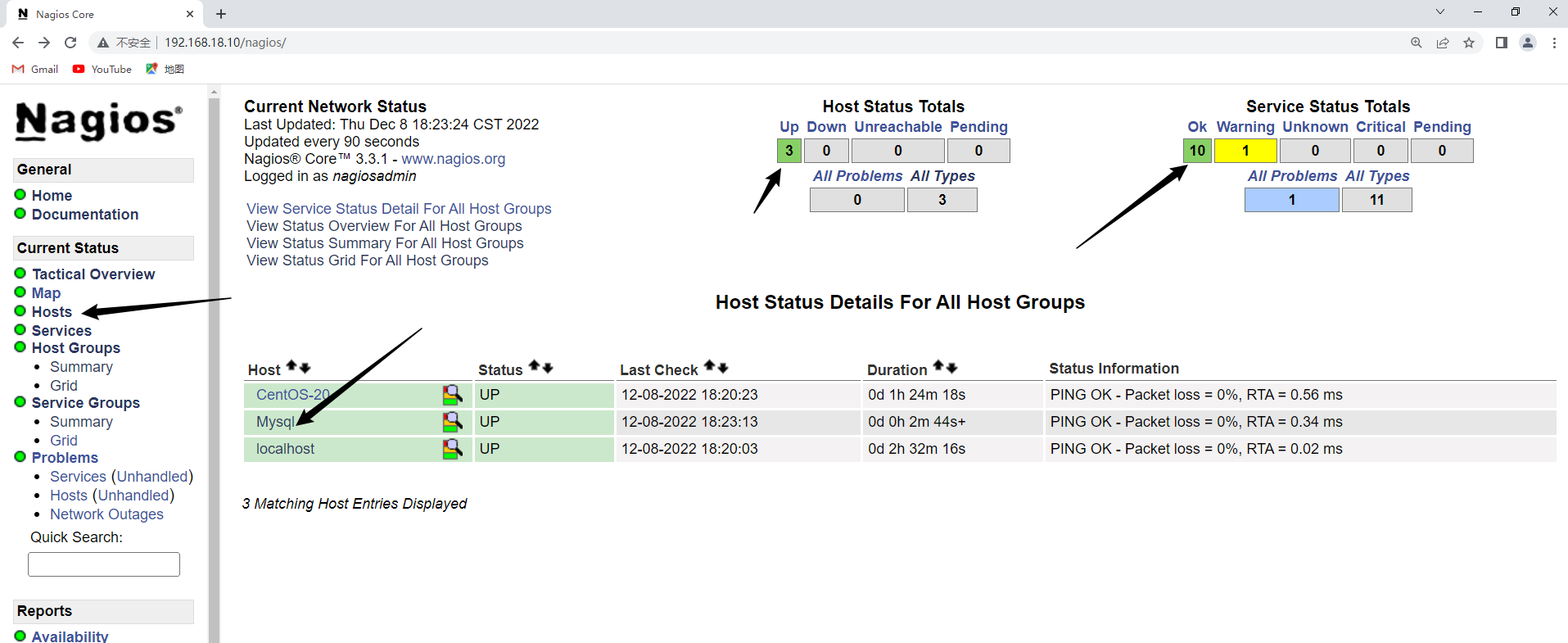

5.检查nagios语法，重启nagios测试

[root@localhost ~]# nagios -v /usr/local/nagios/etc/nagios.cfg
[root@localhost ~]# service nagios restart

7）增加对windows的监控

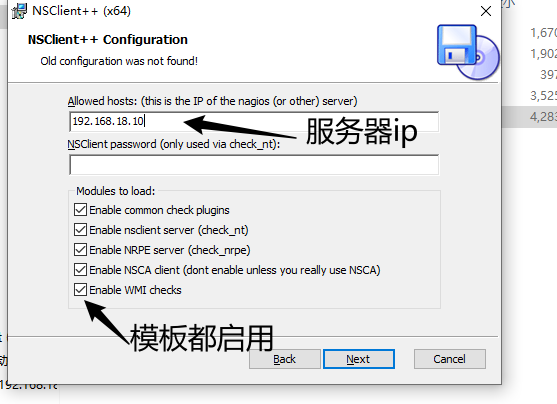

1.Windows配置：上传程序进行安装，安装完成以后需要关闭防火墙

2. 6-1进行配置

#只需要仅主配置文件调用windows.cfg
[root@localhost ~]# vim /usr/local/nagios/etc/nagios.cfg
[root@localhost ~]# grep "windows.cfg" /usr/local/nagios/etc/nagios.cfg
cfg_file=/usr/local/nagios/etc/objects/windows.cfg
#cfg_file=/usr/local/nagios/etc/objects/windows.cfg

#更改windows.cfg的ip地址
[root@localhost ~]# vim /usr/local/nagios/etc/objects/windows.cfg
[root@localhost ~]# grep "192.168.18.101" /usr/local/nagios/etc/objects/windows.cfg
    address     192.168.18.101  ; IP address of the host

#根据实际邮箱更改
[root@localhost ~]# vim /usr/local/nagios/etc/objects/contacts.cfg
[root@localhost ~]# grep "qq.com" /usr/local/nagios/etc/objects/contacts.cfg
        email                           1208779136@qq.com   ; <<***** CHANGE THIS TO YOUR EMAIL ADDRESS ******


[root@localhost ~]# service nagios restart              #重启nagios
