7 Kubernetes-调度器和调度算法

决定 pod 在具体哪个节点中运行。比如，有些pod对节点的GPU、磁盘类型有要求

一、调度说明

1、scheduler为 Kubernetes 的调度器

创建pod时，处于pending状态，即等待 scheduler 决定调度到哪个节点中运行

scheduler 的调度需要考虑：公平、资源高效利用、效率调度、灵活调度

1.公平：保证每个节点都能分配到资源
2.资源高效利用：集群所有资源最大化利用
3.效率：调度有效率性，尽快处理大量pod的调度
4.灵活：让用户根据自己需求，在指定节点中运行

2、调度过程

注意：满足所有算法，才能通过选择

1）预选（排除不满足要求的节点）

常用算法：资源、NodeName、port、Label、Volume

  • PodFitsResources：节点上剩余的资源是否大于 pod 请求的资源
  • PodFitsHost：如果 pod 指定了 NodeName，检查节点名称是否和 NodeName 匹配
  • PodFitsHostPorts：节点上已经使用的 port 是否和 pod 申请的 port 冲突
  • PodSelectorMatches：过滤掉和 pod 指定的 label 不匹配的节点
  • NoDiskConflict：已经 mount 的 volume 和 pod 指定的 volume 不冲突，除非它们都是只读

2）优选（从满足的节点中，进行排序，选择最优的）

常用算法：使用率、接近率、总数（权重越高、越优）

  • LeastRequestedPriority：CPU和MEM的使用率，使用率越低，权重越高
  • BalancedResourceAllocation：CPU和MEM使用率的接近率，接近率越低，权重越高
  • ImageLocalityPriority：节点镜像总数，总数越高，权重越高

3、定义调度器

除了 kubernetes 自带的调度器，你也可以编写自己的调度器。通过 spec:schedulername 参数指定调度器的名字，可以为 pod 选择某个调度器进行调度。（一般不用，官方调度器已经够优秀）

apiVersion: v1
kind: Pod
metadata:
  name: test-scheduler
  labels:
    name: test-scheduler
spec:
  schedulername: test-scheduler
  containers:
  - name: pod-with-second-annotation-container
    image: wangyanglinux/myapp:v2

下面介绍调度的灵活性

二、调度亲和性

1、节点亲和性

pod.spec.affinity.nodeAffinity

  • preferredDuringSchedulingIgnoredDuringExecution：软策略（满足则运行，不满足也会运行）

​ 软策略有权重的原因：若有多个亲和性，设置权重，根据权重选择（若只有一个亲和，不设置权重，默认为1）

  • requiredDuringSchedulingIgnoredDuringExecution：硬策略（满足才会运行，不满足不运行）

拓展：给节点添加标签

$ kubectl label node k8s-node01 disktype=sshd

键值运算关系

  • In：label 的值在某个列表中
  • NotIn：label 的值不在某个列表中
  • Gt：label 的值大于某个值
  • Lt：label 的值小于某个值
  • Exists：某个 label 存在
  • DoesNotExist：某个 label 不存在

如果nodeSelectorTerms下面有多个选项的话，满足任何一个条件就可以了

如果matchExpressions有多个选项的话，则必须同时满足这些条件才能正常调度 POD

1）实验1：节点亲和性---硬策略

1.pod.yaml.md

实验步骤：
[root@k8s-master01 6]# vim 1.pod.yaml
[root@k8s-master01 6]# cat 1.pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: affinity
  labels:
    app: node-affinity-pod
spec:
  containers:
  - name: with-node-affinity
    image: wangyanglinux/myapp:v1
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: kubernetes.io/hostname
            operator: NotIn
            values:
            - k8s-node02
[root@k8s-master01 6]# kubectl apply -f 1.pod.yaml
pod/affinity created
[root@k8s-master01 6]# kubectl get pod -o wide
NAME       READY   STATUS    RESTARTS   AGE   IP              NODE         NOMINATED NODE   READINESS GATES
affinity   1/1     Running   0          6s    172.100.1.185   k8s-node01   <none>           <none>
[root@k8s-master01 6]#



# 更改硬策略为：在 kubernetes.io/hostname=k8s-node03 的节点上运行（若没有，则不运行）
[root@k8s-master01 6]# cp -a 1.pod.yaml 1.1.pod.yaml
[root@k8s-master01 6]# vim 1.1.pod.yaml
[root@k8s-master01 6]# cat 1.1.pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: affinity
  labels:
    app: node-affinity-pod
spec:
  containers:
  - name: with-node-affinity
    image: wangyanglinux/myapp:v1
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: kubernetes.io/hostname
            operator: In
            values:
            - k8s-node03


[root@k8s-master01 6]# kubectl delete pod affinity
[root@k8s-master01 6]# kubectl apply -f 1.1.pod.yaml
pod/affinity created
[root@k8s-master01 6]# kubectl get pod
NAME       READY   STATUS    RESTARTS   AGE
affinity   0/1     Pending   0          2m3s

2）实验2：节点亲和性---软策略

实验步骤：
# 1、给节点设置一个新的标签
[root@k8s-master01 6]# kubectl label node k8s-node01 disktype=sshd
[root@k8s-master01 6]# kubectl get node -o wide --show-labels |grep sshd
k8s-node01     Ready    <none>   24d   v1.15.1   192.168.20.202   <none>        CentOS Linux 7 (Core)   4.4.222-1.el7.elrepo.x86_64   docker://20.10.22   beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,disktype=sshd,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-node01,kubernetes.io/os=linux


# 2、运行一个pod，亲和性为软策略，匹配disktype=sshd的节点
[root@k8s-master01 6]# vim 2.pod.yaml
[root@k8s-master01 6]# cat 2.pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: preferredaffinity
  labels:
    app: node-affinity-pod
spec:
  containers:
  - name: with-node-affinity
    image: wangyanglinux/myapp:v1
  affinity:
    nodeAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
      - weight: 1
        preference:
          matchExpressions:
          - key: disktype
            operator: In
            values:
            - sshd

# 3、写一个死循环，发现pod一直在node01节点创建
[root@k8s-master01 6]# while true;do kubectl apply -f 2.pod.yaml && kubectl get pod -o wide && kubectl delete -f 2.pod.yaml ;done
pod/preferredaffinity created
NAME                READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
affinity            0/1     Pending             0          30m   <none>   <none>       <none>           <none>
preferredaffinity   0/1     ContainerCreating   0          0s    <none>   k8s-node01   <none>           <none>
pod "preferredaffinity" deleted
pod/preferredaffinity created
NAME                READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
affinity            0/1     Pending             0          30m   <none>   <none>       <none>           <none>
preferredaffinity   0/1     ContainerCreating   0          0s    <none>   k8s-node01   <none>           <none>
.....



# 4、修改2.pod.yaml 文件，将软亲和改为匹配 disktype=ssd 的节点
[root@k8s-master01 6]# vim 2.2.pod.yaml
[root@k8s-master01 6]# cat 2.2.pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: preferredaffinity
  labels:
    app: node-affinity-pod
spec:
  containers:
  - name: with-node-affinity
    image: wangyanglinux/myapp:v1
  affinity:
    nodeAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
      - weight: 1
        preference:
          matchExpressions:
          - key: disktype
            operator: In
            values:
            - ssd

# 匹配不到运算符，可能会在别的节点运行（受多个因素影响，由调度器根据优选和预选决定）
[root@k8s-master01 6]# while true;do kubectl apply -f 2.2.pod.yaml && kubectl get pod -o wide && kubectl delete -f 2.2.pod.yaml ;done
pod/preferredaffinity created
NAME                READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
preferredaffinity   0/1     ContainerCreating   0          0s    <none>   k8s-node01   <none>           <none>
pod "preferredaffinity" deleted
pod/preferredaffinity created
NAME                READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
preferredaffinity   0/1     ContainerCreating   0          0s    <none>   k8s-node01   <none>           <none>
pod "preferredaffinity" deleted
pod/preferredaffinity created
NAME                READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
preferredaffinity   0/1     ContainerCreating   0          0s    <none>   k8s-node02   <none>           <none>
pod "preferredaffinity" deleted

3）实验3：节点亲和性---软、硬策略

​ （以硬策略为准）

实验步骤：
[root@k8s-master01 6]# vim 3.pod.yaml
[root@k8s-master01 6]# cat 3.pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: affinity
  labels:
    app: node-affinity-pod
spec:
  containers:
  - name: with-node-affinity
    image: wangyanglinux/myapp:v1
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: kubernetes.io/hostname
            operator: NotIn
            values:
            - k8s-node02
      preferredDuringSchedulingIgnoredDuringExecution:
      - weight: 1
        preference:
          matchExpressions:
          - key: source
            operator: In
            values:
            - qikqiak

[root@k8s-master01 6]# while true;do kubectl apply -f 3.pod.yaml && kubectl get pod -o wide && kubectl delete -f 3.pod.yaml;done
pod/affinity created
NAME       READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
affinity   0/1     ContainerCreating   0          0s    <none>   k8s-node01   <none>           <none>
pod "affinity" deleted
pod/affinity created
NAME       READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
affinity   0/1     ContainerCreating   0          0s    <none>   k8s-node01   <none>           <none>
pod "affinity" deleted
pod/affinity created
NAME       READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
affinity   0/1     ContainerCreating   0          0s    <none>   k8s-node01   <none>           <none>
pod "affinity" deleted
pod/affinity created
NAME       READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
affinity   0/1     ContainerCreating   0          0s    <none>   k8s-node01   <none>           <none>
pod "affinity" deleted
pod/affinity created
NAME       READY   STATUS              RESTARTS   AGE   IP       NODE         NOMINATED NODE   READINESS GATES
affinity   0/1     ContainerCreating   0          0s    <none>   k8s-node01   <none>           <none>
pod "affinity" deleted

2、pod亲和性

pod.spec.affinity.podAffinity （pod亲和性）

pod.spec.affinity.podAntiAffinity （pod反亲和性）

  • requiredDuringSchedulingIgnoredDuringExecution：硬策略
  • preferredDuringSchedulingIgnoredDuringExecution：软策略

亲和性/反亲和性调度策略比较如下：

调度策略 匹配标签 操作符 拓扑域支持 调度目标
nodeAffinity 主机 In, NotIn, Exists, DoesNotExist, Gt, Lt 否 指定主机
podAffinity POD In, NotIn, Exists, DoesNotExist 是 POD与指定POD同一拓扑域
podAnitAffinity POD In, NotIn, Exists, DoesNotExist 是 POD与指定POD不在同一拓扑域

过程：先寻找是否有匹配的pod存在

​ 若存在，则根据pod所在节点，由定义的拓扑域（topologykey），寻找相同的拓扑域所在节点

​ 则找出的节点，均可运行

拓扑域：由 topologykey 选项定义

topologyKey: kubernetes.io/hostname
topologyKey: disktype

实验步骤：

1、首先创建有pod硬亲和性的pod

[root@k8s-master01 6]# vim 4.pod.yaml
[root@k8s-master01 6]# cat 4.pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: pod-3
  labels:
    app: pod-3
spec:
  containers:
  - name: pod-3
    image: wangyanglinux/myapp:v1
  affinity:
    podAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
      - labelSelector:
          matchExpressions:
          - key: app
            operator: In
            values:
            - pod-1
        topologyKey: disktype
[root@k8s-master01 6]# kubectl apply -f 4.pod.yaml

# 发现pod无法创建，因为没有匹配的pod存在
[root@k8s-master01 6]# kubectl get pod
NAME    READY   STATUS    RESTARTS   AGE
pod-3   0/1     Pending   0          21s

2、创建一个测试的pod,并匹配标签app=pod-1

[root@k8s-master01 6]# vim 5.test.yaml
[root@k8s-master01 6]# cat 5.test.yaml
apiVersion: v1
kind: Pod
metadata:
  name: test
  labels:
    app: pod-1
spec:
  containers:
  - name: test
    image: wangyanglinux/myapp:v1
[root@k8s-master01 6]# kubectl apply -f 5.test.yaml



# 发现有pod亲和性的标签正常运行
[root@k8s-master01 6]# kubectl get pod
NAME    READY   STATUS    RESTARTS   AGE
pod-3   1/1     Running   0          2m34s
test    1/1     Running   0          78s

3、测试拓扑域选择

​ 先给node02节点添加disktype的key，前面已经给node01添加disktype

[root@k8s-master01 6]# kubectl label node k8s-node02 disktype=sshh
[root@k8s-master01 6]# kubectl get node --show-labels|grep disktype
k8s-node01     Ready    <none>   24d   v1.15.1   beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,disktype=sshd,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-node01,kubernetes.io/os=linux
k8s-node02     Ready    <none>   24d   v1.15.1   beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,disktype=sshd,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-node02,kubernetes.io/os=linux


# 利用循环，测试亲和性pod的选择（有拓扑域影响，可以在node01、node02上运行；也有调度器的预选优选的影响）
[root@k8s-master01 6]# kubectl delete pod pod-3
[root@k8s-master01 6]# while true;do kubectl apply -f 4.pod.yaml && kubectl get pod -o wide && kubectl delete -f 4.pod.yaml ;done
pod/pod-3 created
NAME    READY   STATUS              RESTARTS   AGE   IP             NODE         NOMINATED NODE   READINESS GATES
pod-3   0/1     ContainerCreating   0          1s    <none>         k8s-node02   <none>           <none>
test    1/1     Running             0          30s   172.100.1.64   k8s-node01   <none>           <none>
pod "pod-3" deleted
pod/pod-3 created
NAME    READY   STATUS              RESTARTS   AGE   IP             NODE         NOMINATED NODE   READINESS GATES
pod-3   0/1     ContainerCreating   0          0s    <none>         k8s-node01   <none>           <none>
test    1/1     Running             0          37s   172.100.1.64   k8s-node01   <none>           <none>
pod "pod-3" deleted
pod/pod-3 created
NAME    READY   STATUS              RESTARTS   AGE   IP             NODE         NOMINATED NODE   READINESS GATES
pod-3   0/1     ContainerCreating   0          0s    <none>         k8s-node02   <none>           <none>
test    1/1     Running             0          39s   172.100.1.64   k8s-node01   <none>           <none>
pod "pod-3" deleted

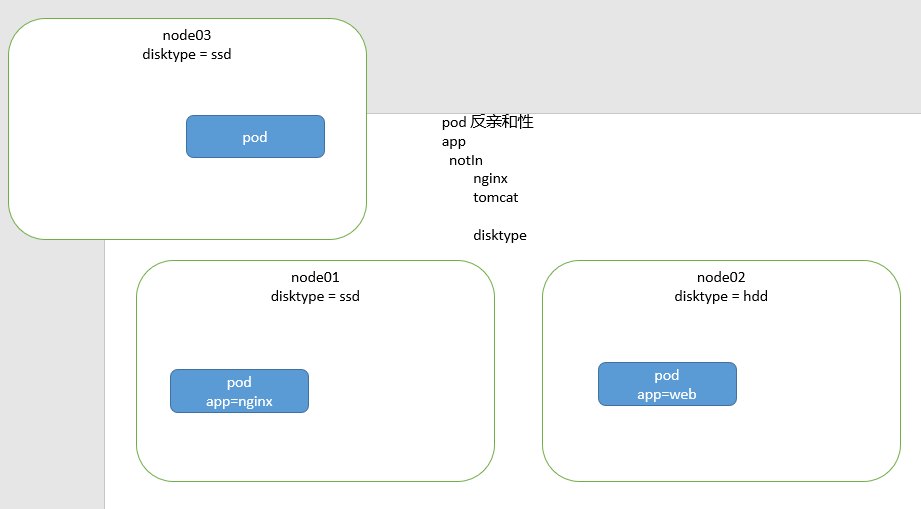

3、pod反亲和性

​ 比如：避免两个数据库在同一个节点运行

# 1、清理所有pod，避免影响
[root@k8s-master01 6]# kubectl delete pod --all

# 2、新建test的pod，并运行，查看在哪个节点运行
[root@k8s-master01 6]# vim 5.test.yaml
[root@k8s-master01 6]# cat 5.test.yaml
apiVersion: v1
kind: Pod
metadata:
  name: test
  labels:
    app: pod-1
spec:
  containers:
  - name: test
    image: wangyanglinux/myapp:v1
[root@k8s-master01 6]# kubectl apply -f 5.test.yaml
pod/test created
[root@k8s-master01 6]# kubectl get pod -o wide
NAME   READY   STATUS    RESTARTS   AGE   IP             NODE         NOMINATED NODE   READINESS GATES
test   1/1     Running   0          5s    172.100.1.92   k8s-node01   <none>           <none>


# 3、新建pod-3的pod，利用pod反亲和性，与test的pod分开
[root@k8s-master01 6]# vim 6.pod.yaml
[root@k8s-master01 6]# cat 6.pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: pod-3
  labels:
    app: pod-3
spec:
  containers:
  - name: pod-3
    image: wangyanglinux/myapp:v1
  affinity:
    podAntiAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
      - weight: 1
        podAffinityTerm:
          labelSelector:
            matchExpressions:
            - key: app
              operator: In
              values:
              - pod-1
          topologyKey: disktype

[root@k8s-master01 6]# kubectl apply -f 6.pod.yaml && kubectl get pod -o wide
pod/pod-3 created
NAME    READY   STATUS              RESTARTS   AGE   IP             NODE         NOMINATED NODE   READINESS GATES
pod-3   0/1     ContainerCreating   0          0s    <none>         k8s-node02   <none>           <none>
test    1/1     Running             0          32s   172.100.1.92   k8s-node01   <none>           <none>

# 发现新建的pod，与test的pod不在同一个节点。验证了pod反亲和性

注意：存在节点亲和性和pod亲和性的原因

​ 节点亲和性，只是相对于节点亲和。而pod亲和性，相对于pod亲和

​ 比如：pod-nginx运行在node01

​ 若pod-php-fpm与node01亲和，当pod-nginx重建运行在node02 。而pod-php-fpm重建后仍在node01

​ 若pod-php-fpm与pod-nginx亲和，当pod-nginx重建运行在node02，相应的，pod-php-fpm重建后也会到node02

亲和性/反亲和性调度策略比较如下：

调度策略 匹配标签 操作符 拓扑域支持 调度目标
nodeAffinity 主机 In, NotIn, Exists, DoesNotExist, Gt, Lt 否 指定主机
podAffinity POD In, NotIn, Exists, DoesNotExist 是 POD与指定POD同一拓扑域
podAnitAffinity POD In, NotIn, Exists, DoesNotExist 是 POD与指定POD不在同一拓扑域

注意：pod的反亲和性与 NotIn 运算符结合

​ （并非简单的双重否定表肯定）

​ 1.由运算符匹配不在列表的pod

​ 2.再利用反亲和性，找到pod对应所在的节点

​ 3.根据节点的拓扑域，进行选择pod运行所在节点

image-20230206181515529

三、污点、容忍

解决：默认不在特殊节点上运行pod的情况。比如：默认不在有GPU节点上运行pod

​ 在有GPU节点上设置污点。若需要运行在GPU节点上，需要忍受污点，还有其他因素决定（比如：预选、优选、有节点硬亲和）

注意：污点并不一定是差的

1、污点---Taint

​ 使节点排斥一类特定的pod

​ 若容忍污点以后，还需要预选、优选决定

1）当前 taint effect 支持的三个选项：

  • NoSchedule：不调度，不会被调度的节点，除非pod设置容忍此选项
  • PreferNoSchedule：尽量不被调度的节点（ K8S 中master高可用时，可以设置）
  • NoExecute：不运行pod的节点（常用于节点的更新、升级、维护等）

2）二进制、容器化安装 K8S 的核心区别

二进制安装后，在master节点没有：容器运行时(CRI)、kubelet、kube-proxy，无法运行pod

容器化安装后，所有组件都是基于pod运行，所以存在容器运行时(CRI)、kubelet、kube-proxy，可以运行pod

3）实验1：污点的设置、查看、去除

核心命令：

# 设置污点
kubectl taint nodes node1 key1=value1:NoSchedule

# 节点说明中，查找 Taints 字段
kubectl describe pod  pod-name

# 去除污点
kubectl taint nodes node1 key1:NoSchedule-

实验步骤：

在master节点中，存在一个污点

Ⅰ、查看master节点的污点
[root@k8s-master01 ~]# mkdir 9;cd 9

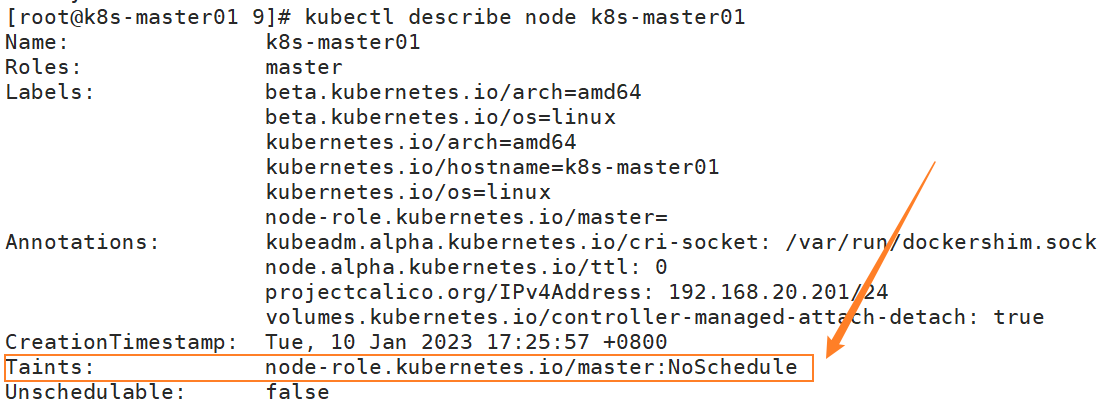

$ kubectl describe node k8s-master01

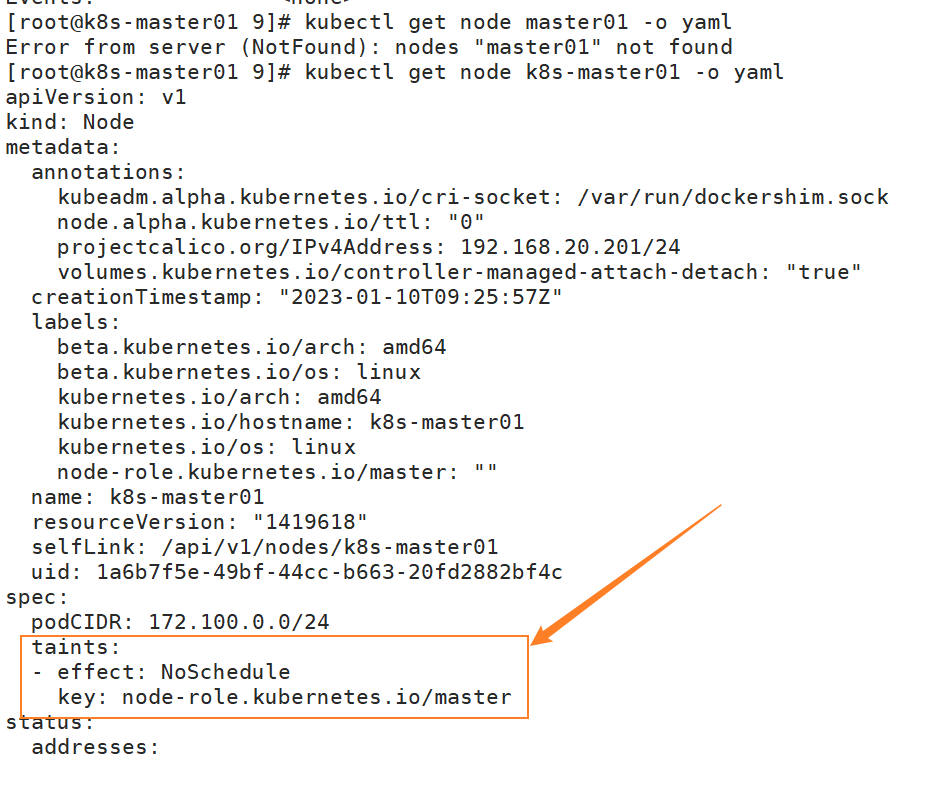

$ kubectl get node k8s-master01 -o yaml

​ image-20230206190545347

​ image-20230206191149327

Ⅱ、去除master污点
# 去除master的污点
[root@k8s-master01 9]# kubectl taint node k8s-master01 node-role.kubernetes.io/master=:NoSchedule-
[root@k8s-master01 9]# kubectl describe node k8s-master01 |grep Taint
Taints:             <none>


# 创建deployment控制器，修改控制器副本数量，查看pod会在master节点运行
[root@k8s-master01 9]# kubectl create deployment myapp --image=wangyanglinux/myapp:v1

[root@k8s-master01 9]# kubectl scale deployment myapp --replicas=10

[root@k8s-master01 9]# kubectl get pod -o wide |grep master01
myapp-69cd984b7b-6rr58   1/1     Running   0          70s   172.100.0.4     k8s-master01   <none>           <none>
myapp-69cd984b7b-tt9bn   1/1     Running   0          70s   172.100.0.5     k8s-master01   <none>           <none>
myapp-69cd984b7b-w5n6c   1/1     Running   0          70s   172.100.0.3     k8s-master01   <none>           <none>
myapp-69cd984b7b-wvcsw   1/1     Running   0          70s   172.100.0.2     k8s-master01   <none>           <none>
Ⅲ、设置master的污点
[root@k8s-master01 9]# kubectl taint node k8s-master01 node-role.kubernetes.io/master=:NoSchedule
node/k8s-master01 tainted
[root@k8s-master01 9]# kubectl describe node k8s-master01|grep Taint
Taints:             node-role.kubernetes.io/master:NoSchedule

4）实验2：测试 noscheduler、preferscheduler

Ⅰ、测试noscheduler
# 给k8s-node01设置污点
[root@k8s-master01 9]# kubectl taint node k8s-node01 key=:NoSchedule
[root@k8s-master01 9]# kubectl describe node k8s-node01 |grep Taint
Taints:             key:NoSchedule

# 清理刚才创建的控制器
[root@k8s-master01 9]# kubectl delete deployment --all

# 新建控制器
[root@k8s-master01 9]# kubectl create deployment myapp --image=wangyanglinux/myapp:v1
# 修改控制器副本数量
[root@k8s-master01 9]# kubectl scale deployment myapp --replicas=10

# 查看pod运行的所在节点，在node01中没有运行pod
[root@k8s-master01 9]# kubectl get pod -o wide
NAME                     READY   STATUS    RESTARTS   AGE   IP              NODE         NOMINATED NODE   READINESS GATES
myapp-69cd984b7b-2w7tf   1/1     Running   0          6s    172.100.2.223   k8s-node02   <none>           <none>
myapp-69cd984b7b-5lrg5   1/1     Running   0          6s    172.100.2.222   k8s-node02   <none>           <none>
myapp-69cd984b7b-84n4x   1/1     Running   0          6s    172.100.2.218   k8s-node02   <none>           <none>
myapp-69cd984b7b-8gg7z   1/1     Running   0          6s    172.100.2.224   k8s-node02   <none>           <none>
myapp-69cd984b7b-8x798   1/1     Running   0          6s    172.100.2.221   k8s-node02   <none>           <none>
myapp-69cd984b7b-9btkt   1/1     Running   0          6s    172.100.2.220   k8s-node02   <none>           <none>
myapp-69cd984b7b-c654l   1/1     Running   0          6s    172.100.2.225   k8s-node02   <none>           <none>
myapp-69cd984b7b-qzdft   1/1     Running   0          33s   172.100.2.217   k8s-node02   <none>           <none>
myapp-69cd984b7b-rmk72   1/1     Running   0          6s    172.100.2.219   k8s-node02   <none>           <none>
myapp-69cd984b7b-szhhr   1/1     Running   0          6s    172.100.2.226   k8s-node02   <none>           <none>
[root@k8s-master01 9]# kubectl get pod -o wide |grep node01
Ⅱ、测试preferscheduler

注意：污点不能直接修改，只能先删除已经存在的污点，在创建不同effect的污点

# 清理刚才设置的effect
[root@k8s-master01 9]# kubectl taint node k8s-node01 key=:NoSchedule-

# 设置新的effect  PreferNoSchedule
[root@k8s-master01 9]# kubectl taint node k8s-node01 key=:PreferNoSchedule
# 检查设置的effect
[root@k8s-master01 9]# kubectl describe node k8s-node01 |grep Taint
Taints:             key:PreferNoSchedule

# 清理刚才创建的控制器
[root@k8s-master01 9]# kubectl delete deployment --all
# 新建控制器
[root@k8s-master01 9]# kubectl create deployment myapp --image=wangyanglinux/myapp:v1
# 改变副本数量
[root@k8s-master01 9]# kubectl scale deployment myapp --replicas=10
# 查看pod运行的所在节点
[root@k8s-master01 9]# kubectl get pod -o wide
NAME                     READY   STATUS    RESTARTS   AGE   IP              NODE         NOMINATED NODE   READINESS GATES
myapp-69cd984b7b-5ghk6   1/1     Running   0          3s    172.100.2.238   k8s-node02   <none>           <none>
myapp-69cd984b7b-8qh9l   1/1     Running   0          3s    172.100.2.236   k8s-node02   <none>           <none>
myapp-69cd984b7b-8rcqz   1/1     Running   0          3s    172.100.1.107   k8s-node01   <none>           <none>
myapp-69cd984b7b-djl7s   1/1     Running   0          3s    172.100.1.109   k8s-node01   <none>           <none>
myapp-69cd984b7b-f6xjk   1/1     Running   0          3s    172.100.2.235   k8s-node02   <none>           <none>
myapp-69cd984b7b-gzcdr   1/1     Running   0          3s    172.100.1.110   k8s-node01   <none>           <none>
myapp-69cd984b7b-hphss   1/1     Running   0          13s   172.100.2.233   k8s-node02   <none>           <none>
myapp-69cd984b7b-qxjwk   1/1     Running   0          3s    172.100.1.108   k8s-node01   <none>           <none>
myapp-69cd984b7b-wtbvv   1/1     Running   0          3s    172.100.2.237   k8s-node02   <none>           <none>
myapp-69cd984b7b-x9gld   1/1     Running   0          3s    172.100.2.234   k8s-node02   <none>           <none>


# 发现在node01节点会运行pod
[root@k8s-master01 9]# kubectl get pod -o wide |grep node01|wc -l
4

2、容忍---tolerations

​ pod.spec.tolerations

# 案例解释

tolerations:                # 设置容忍
- key: "key1"                   # 当key1=value1，且effect为：NoSchedule，进行容忍
  operator: "Equal"
  value: "value1"
  effect: "NoSchedule"
- key: "key1"                   # 当key1=value1，且effect为：NoExecute，进行容忍，在3600秒内，需要将节点中运行的pod转移到别的节点
  operator: "Equal"
  value: "value1"
  effect: "NoExecute"
  tolerationSeconds: 3600
- key: "key2"                   # 当key2存在时，且effect为NoSchedule，进行容忍
  operator: "Exists"
  effect: "NoSchedule"

1）常用设置

Ⅰ、只要有污点，都容忍
tolerations:
- operator: "Exists"
Ⅱ、当不指定 effect 值时，表示容忍所有的污点作用
tolerations:
- key: "key"
  operator: "Exists"
Ⅲ、有多个 Master 存在时，防止资源浪费，可以如下设置
kubectl taint nodes Node-Name node-role.kubernetes.io/master=:PreferNoSchedule

2）实验1：测试 daemonset 控制器容忍master节点

​ daemonset控制器：在每个节点，有且仅有的运行一个pod

# 容忍的核心部分
      tolerations:
      - key: "node-role.kubernetes.io/master"
        operator: "Exists"
        effect: "NoSchedule"

实验步骤：

[root@k8s-master01 9]# vim 1.daemonset.yaml
[root@k8s-master01 9]# cat 1.daemonset.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: deamonset-example
  labels:
    app: daemonset
spec:
  selector:
    matchLabels:
      name: deamonset-example
  template:
    metadata:
      labels:
        name: deamonset-example
    spec:
      tolerations:
      - key: "node-role.kubernetes.io/master"
        operator: "Exists"
        effect: "NoSchedule"
      containers:
      - name: daemonset-example
        image: wangyanglinux/myapp:v1
[root@k8s-master01 9]# kubectl apply -f 1.daemonset.yaml
daemonset.apps/deamonset-example created
[root@k8s-master01 9]# kubectl get pod -o wide
NAME                      READY   STATUS    RESTARTS   AGE   IP              NODE           NOMINATED NODE   READINESS GATES
deamonset-example-754ff   1/1     Running   0          5s    172.100.0.6     k8s-master01   <none>           <none>
deamonset-example-ndv5r   1/1     Running   0          5s    172.100.2.239   k8s-node02     <none>           <none>
deamonset-example-w6rbq   1/1     Running   0          5s    172.100.1.111   k8s-node01     <none>           <none>

3）实验2：让pod仅在设置对应污点的节点运行

容忍污点后，还需进行预选、优选，若让pod仅在设置对应污点的节点运行，结合亲和性

# 1、清理之前创建的deployment控制器
[root@k8s-master01 9]# kubectl delete deployment --all
deployment.extensions "myapp-deploy" deleted
[root@k8s-master01 9]# kubectl get pod
No resources found.

# 2、容忍master01节点的污点，结合节点亲和性的硬亲和，实现让pod仅在设置对应污点的节点运行
[root@k8s-master01 9]# vim 2.deployment.yaml
[root@k8s-master01 9]# cat 2.deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-deploy
  namespace: default
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
      release: stabel
  template:
    metadata:
      labels:
        app: myapp
        release: stabel
    spec:
      containers:
      - name: myapp
        image: wangyanglinux/myapp:v1
      tolerations:
      - key: "node-role.kubernetes.io/master"
        operator: "Exists"
        effect: "NoSchedule"
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/hostname
                operator: In
                values:
                - k8s-master01
[root@k8s-master01 9]# kubectl apply -f 2.deployment.yaml
deployment.apps/myapp-deploy created


# 3、查看所有运行的pod，都在master01节点，此时master01节点存在污点
[root@k8s-master01 9]# kubectl get pod -o wide
NAME                            READY   STATUS    RESTARTS   AGE   IP             NODE           NOMINATED NODE   READINESS GATES
myapp-deploy-59dc7d6fc6-2w7mq   1/1     Running   0          8s    172.100.0.13   k8s-master01   <none>           <none>
myapp-deploy-59dc7d6fc6-dzxbb   1/1     Running   0          8s    172.100.0.12   k8s-master01   <none>           <none>
myapp-deploy-59dc7d6fc6-h6kgj   1/1     Running   0          8s    172.100.0.11   k8s-master01   <none>           <none>
[root@k8s-master01 9]# kubectl describe node k8s-master01|grep Taint
Taints:             node-role.kubernetes.io/master:NoSchedule

注意：数据库类pod

​ 最好在固态盘所在节点运行，机械盘也行-----软亲和

四、指定调度节点

1、Pod.spec.nodeName

会跳过 Scheduler 的调度策略，该匹配规则是强制匹配

可限制范围小，优先级高。有污点的节点，没有容忍也能运行，但仍会经过预选、优选

实验：在指定节点上运行

在master节点需要容忍才能运行pod，用 Pod.spec.nodeName 选项，没有容忍也能运行

# 写一个 3.deployment.yaml 文件，让控制器的pod都在k8s-master01中运行，此时k8s-master01节点存在污点
# 核心选项：      nodeName: k8s-master01
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: myweb
spec:
  replicas: 3
  template:
    metadata:
      labels:
        app: myweb
    spec:
      nodeName: k8s-master01
      containers:
      - name: myweb
        image: wangyanglinux/myapp:v1
        ports:
        - containerPort: 80

实验步骤：

Ⅰ、清理基于当前目录所有的yaml创建的资源对象
$ ck8s .

ck8s 命令是编写的一个脚本 命令.md

Ⅱ、基于3.deployment.yaml 文件，创建控制器

​ 实现仅在 k8s-master01 节点运行pod（为对污点进行容忍）

[root@k8s-master01 9]# vim 3.deployment.yaml
[root@k8s-master01 9]# cat 3.deployment.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: myweb
spec:
  replicas: 3
  template:
    metadata:
      labels:
        app: myweb
    spec:
      nodeName: k8s-master01
      containers:
      - name: myweb
        image: wangyanglinux/myapp:v1
        ports:
        - containerPort: 80
[root@k8s-master01 9]# kubectl apply -f 3.deployment.yaml
deployment.extensions/myweb created
[root@k8s-master01 9]# kubectl get pod -o wide
NAME                     READY   STATUS    RESTARTS   AGE   IP             NODE           NOMINATED NODE   READINESS GATES
myweb-7bf59c5ff5-75h2n   1/1     Running   0          4s    172.100.0.14   k8s-master01   <none>           <none>
myweb-7bf59c5ff5-pttjs   1/1     Running   0          4s    172.100.0.16   k8s-master01   <none>           <none>
myweb-7bf59c5ff5-swtlq   1/1     Running   0          4s    172.100.0.15   k8s-master01   <none>           <none>

2、Pod.spec.nodeSelector

标签选择器会经过 scheduler 调度，需要匹配（若节点有污点，需要容忍才能运行）

实验：测试 Pod.spec.nodeSelector 选项

4.deployment,yaml 文件中，加入指定调度节点的标签选择，未设置对污点的容忍

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: myweb
spec:
  replicas: 3
  template:
    metadata:
      labels:
        app: myweb
    spec:
      nodeSelector:
        hardware: GPU
      containers:
      - name: myweb
        image: wangyanglinux/myapp:v1

实验步骤：

Ⅰ、给存在污点的master01节点加入标签
[root@k8s-master01 9]# kubectl label node k8s-master01 hardware=GPU

[root@k8s-master01 9]# kubectl get node --show-labels|grep hardware
k8s-master01   Ready    master   27d   v1.15.1   beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,hardware=GPU,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-master01,kubernetes.io/os=linux,node-role.kubernetes.io/master=
Ⅱ、根据 4.deployment.yaml 创建控制器
[root@k8s-master01 9]# ck8s .

[root@k8s-master01 9]# vim 4.deployment.yaml
[root@k8s-master01 9]# cat 4.deployment.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: myweb
spec:
  replicas: 3
  template:
    metadata:
      labels:
        app: myweb
    spec:
      nodeSelector:
        hardware: GPU
      containers:
      - name: myweb
        image: wangyanglinux/myapp:v1
[root@k8s-master01 9]# kubectl apply -f 4.deployment.yaml

# 发现无法创建，需要容忍master节点的污点
[root@k8s-master01 9]# kubectl get deployment
NAME    READY   UP-TO-DATE   AVAILABLE   AGE
myweb   0/3     3            0           23s
[root@k8s-master01 9]# kubectl get pod
NAME                     READY   STATUS    RESTARTS   AGE
myweb-84fbbb4465-gw8kc   0/1     Pending   0          46s
myweb-84fbbb4465-rxx6l   0/1     Pending   0          46s
myweb-84fbbb4465-v9brc   0/1     Pending   0          46s
Ⅲ、创建新的文件 5.deployment.yaml ，其中加入对污点的容忍
[root@k8s-master01 9]# vim 5.deployment.yaml
[root@k8s-master01 9]# cat 5.deployment.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: myweb
spec:
  replicas: 3
  template:
    metadata:
      labels:
        app: myweb
    spec:
      nodeSelector:
        hardware: GPU
      containers:
      - name: myweb
        image: wangyanglinux/myapp:v1
      tolerations:
      - key: "node-role.kubernetes.io/master"
        operator: "Exists"
        effect: "NoSchedule"
Ⅳ、基于 5.deployment.yaml 运行控制器
[root@k8s-master01 9]# kubectl apply -f 5.deployment.yaml

# 发现在master01节点运行pod成功
[root@k8s-master01 9]# kubectl get pod -o wide
NAME                     READY   STATUS    RESTARTS   AGE   IP             NODE           NOMINATED NODE   READINESS GATES
myweb-5f844c857b-crddz   1/1     Running   0          26s   172.100.0.21   k8s-master01   <none>           <none>
myweb-5f844c857b-rzncw   1/1     Running   0          26s   172.100.0.20   k8s-master01   <none>           <none>
myweb-5f844c857b-sbpp7   1/1     Running   0          23s   172.100.0.22   k8s-master01   <none>           <none>
